Firmware update for Concord DVRs to support Wi-Fi Dongle – Electus Distribution

This update enables Concord Security DVRs to work with the Concord Security Wi-Fi dongle CWUSBD-A (QC5000).

The applicable models (identifiable by the label on the top of the black box) are CDK4242P-V2 (QV5050), CDK8242P-V2 (QV5052), CDK8262P-V2 (QV5054), CDK4242P-V3 (QV5051), CDK8242P-V3 (QV5053), and CDK8262P-V3 (QV5055). Please follow the instructions below to update the firmware on your DVR Base unit.

Please visit this link shown below to download the latest firmware update files for your DVR unit:

https://dam.jeg.systems:443/pindownload/login.do?pin=QVB6TU2Y7IUJ

Extract the Zip file to a local folder. Copy the .SW file to a USB stick. Put the USB stick in the USB port on the back of the base station, connect a screen and mouse to the unit, and power it on if it is off.

Click the bottom-left corner of the screen and then click Setup. Enter your password.

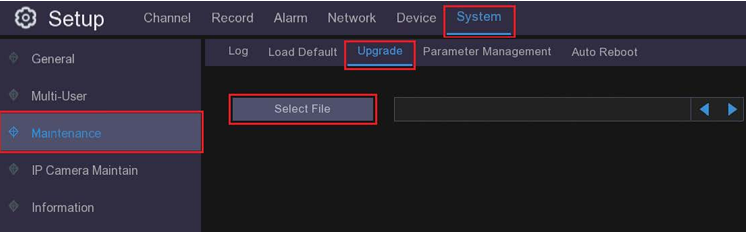

Now click System, then Maintenance, then Upgrade. Click Select File.

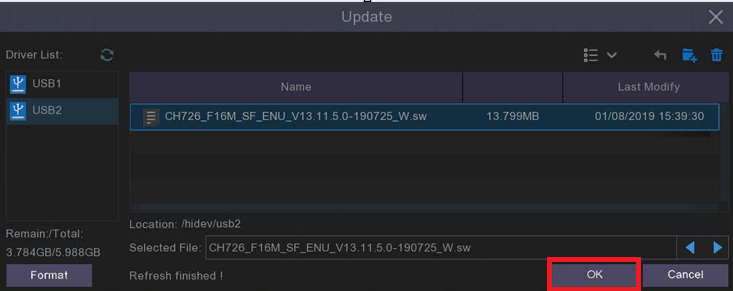

If the USB stick does not appear, swap the USB stick and USB mouse around. Now choose the file: D32XX_V220223V220117V220117V220304V220225V220224V220223V220223.sw

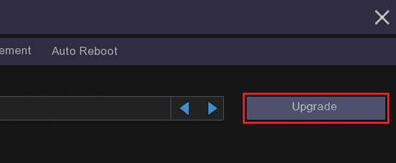

Press OK, and then press Upgrade.

Wait for the success message – the unit should restart after a minute or so. If it does not, power-off the NVR Base unit by pressing Shutdown from the bottom-left corner menu.
